Model:FT-FD1
Brand:fengtu

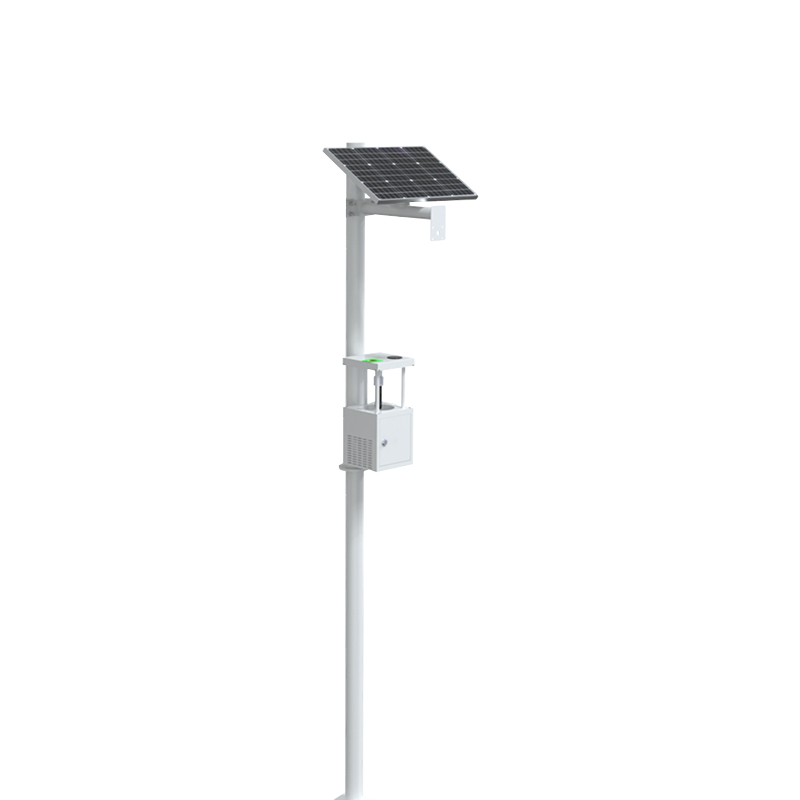

1.Solar insecticidal lamp product overview
Solar insecticidal lamp is an environmentally friendly insecticidal equipment that uses solar energy to generate electricity and adopts the principle of wind suction to kill pests.Solar insecticidal lamp is a physical insecticidal device that uses light waves to lure adult pests to the lamp, and then the fan rotates to generate negative pressure airflow to suck the insects into the collector, so that they can be air-dried and dehydrated to achieve the purpose of killing insects. The wind-suction insecticidal lamp developed by our company has improved the light source and insecticidal method, breaking through the ability to kill small pests with conventional insecticidal lamps, and greatly improving the efficiency of killing pests. The device uses solar panels as power supply, stores power during the day, and provides power for the insecticidal lamp at night to lure pests to the light source. The product consists of an insect-attracting light source, an insecticidal component, an insect-collecting component, a supporting component, etc. It has the characteristics of simple structure, easy installation, strong operability, a variety of insecticidal species, a wide range of insecticidal, safety, environmental protection, and non-toxicity. This product is widely used in agriculture, forestry, warehousing, fish ponds, etc., and can effectively prevent various lepidopteran pests.
2. Solar insecticidal lamp features
1. The device is in standby mode during the day, and uses sunlight intensity and rainfall to control whether the device is working. If it detects rainfall or it is in daytime, the device is in standby mode; if it detects no rain and it is dark, the device works normally.
2. It uses a multi-spectrum insect-attracting light source with a wavelength of 320nm-680nm, which can trap multiple types of pests at the same time.
3. The use of high-power fans can greatly increase the number and efficiency of flukes.
4. Use new polycrystalline solar panels with high energy conversion rate and environmental protection.
3. Solar insecticidal lamp technical parameters
Light source parameters | wavelength | 320nm-680nm |
power | 15W | |
Solar panel parameters | power | 30W |
size | 505*430mm | |
Fan parameters | powered by | 12V |
power | 4W | |
Actual power of the whole machine | ≤15W | |
Pole parameters | diameter | 76mm |
length | 3m | |
Data upload method | single vision | |
Service life | ≥ 3 years | |
Solar power system life | Continuous rainy days for 2 to 3 days |
4. Solar insecticidal lamp product size diagram
5. Solar insecticidal lamp product structure diagram
