environmental parameters of sensors

1.Product introduction of environmental parameters of sensors

environmental parameters of sensors are used to monitor the atmospheric environment, which can detect temperature, humidity, pressure, light, rainfall, wind speed, wind direction, noise, PM2.5 and other environmental parameters.Shandong Fengtu Internet of Things Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteorological instruments, has been committed to the promotion and application of micro meteorological instruments and meteorological environment solutions.With a complete production chain, a strong technical team and a comprehensive marketing team, the meteorological products we develop and produce such as ultrasonic wind speed and direction meters, five-element micrometeorometers, six-element micrometeorometers and small automatic weather stations have been widely used in In the fields of meteorological monitoring, urban environment monitoring, wind power generation, navigation ships, aviation airports, bridges and tunnels, etc., we have customers all over the country and have achieved good social and economic benefits.

Compared with traditional miniature weather instruments, our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

Environmental parameters of sensors, also called air pollution environment monitors, are developed by Shandong Fengtu Internet of Things Technology Co., Ltd.in response to the increasingly severe environmental situation.It targets six pollutant parameters: PM2.5, PM10, CO, SO2, NO2, and O3.As well as highly integrated instruments for monitoring a total of 12 parameters including air temperature, air humidity, wind speed, wind direction, atmospheric pressure and optical rainfall.The main function is to conduct 24-hour continuous online monitoring of conventional pollution factors and meteorological auxiliary parameters in the air, and provide the analyzed data to the Environmental Protection Bureau as a reference for air quality and to assist in environmental protection decision-making.In addition, hydrogen sulfide, volatile organic pollutants, solar radiation, noise, etc.are optional.

Environmental parameters of sensors can be applied to urban grid environmental monitoring and control, smart street lights, scenic area environmental monitoring, factories or mines, construction sites (construction site dust monitoring), urban roads, highways, public places and other places involving air quality monitoring .

2.Product features of environmental parameters of sensors

1.The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind (utility model patent, patent number ZL 2020 2 3215713.X) ☆

2.The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5) ☆

3.Twelve integrated elements of PM2.5, PM10, CO, SO2, NO2, O3, temperature, humidity, wind speed, wind direction, atmospheric pressure, and optical rainfall (utility model patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

6.High integration, no moving parts, zero wear and tear

7.Maintenance-free, no on-site calibration required

8.ASA engineering plastics are used for outdoor applications without discoloration all year round.

9.The standard output signal of product design is RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces support real-time reading of data☆

10.Optional wireless transmission module, minimum transmission interval is 1 minute

11.The probe is a snap-on design, which solves the problem of looseness and inaccurateness during transportation and installation☆

3.Technical parameters of environmental parameters of sensors

1.Wind speed: measurement principle ultrasonic, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, patent number ZL 2021 1 0237536.5)

2.Wind direction: Measurement principle ultrasonic, 0~360° (±2°); Resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: measurement principle capacitive, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: Measurement principle: piezoresistive, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: 0-1000ug/m3 (±10%)

7.PM10: 0-1000ug/m3 (±10%)

8.Optical rainfall: 0-4mm/min (≤±4%) (invention patent, patent number ZL 2022 1 1306149.3)

9.Carbon monoxide: 0-1000ppm (±2PPM)

10.Sulfur dioxide: 0-20PPM (±1PPM)

11.Nitrogen dioxide: 0-20PPM (±1PPM)

12.Ozone: 0-20PPM (±1PPM)

13.Power: 0.84W

14.The production enterprise has ISO quality management system, environmental management system and occupational health management system certification☆

15.The production enterprise has a computer software registration certificate☆

16.The production enterprise is a 3A credit enterprise☆

4.Environmental parameters of sensors product size diagram

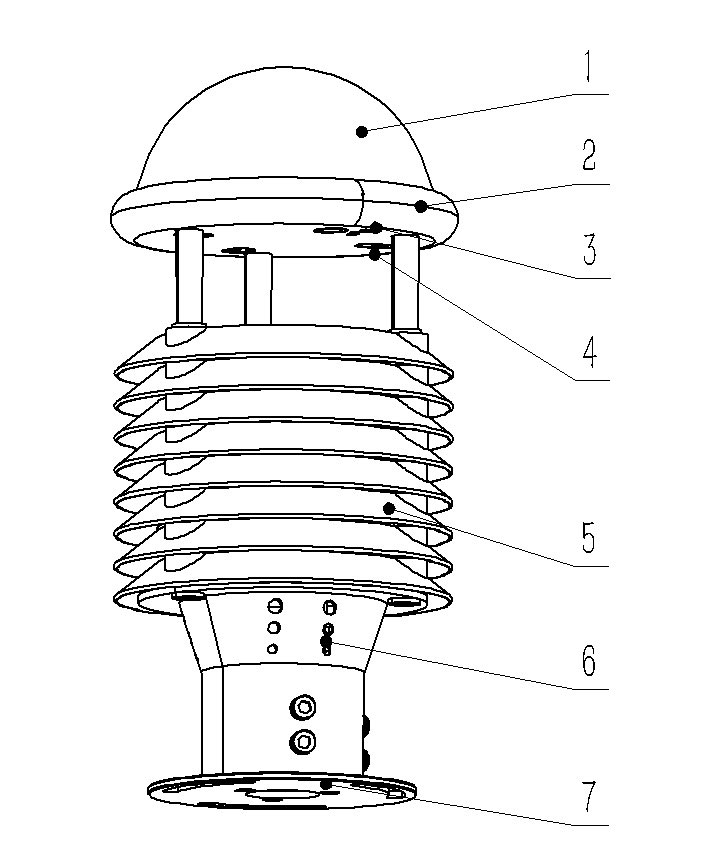

5.Environmental parameters of sensors product structure diagram

1.Optical rain sensor

2.Control circuit

3.North arrow

4.Ultrasonic wind speed and direction

5.Louver PM2.5, PM10, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone

6.Temperature, humidity, and air pressure monitoring locations

7.Bottom fixed flange

6.Definition of environmental parameters of sensors product wiring

definition		Remark
VCC	Power supply positive	DC12V
GND	power ground
485A	RS485A
485B	RS485B
