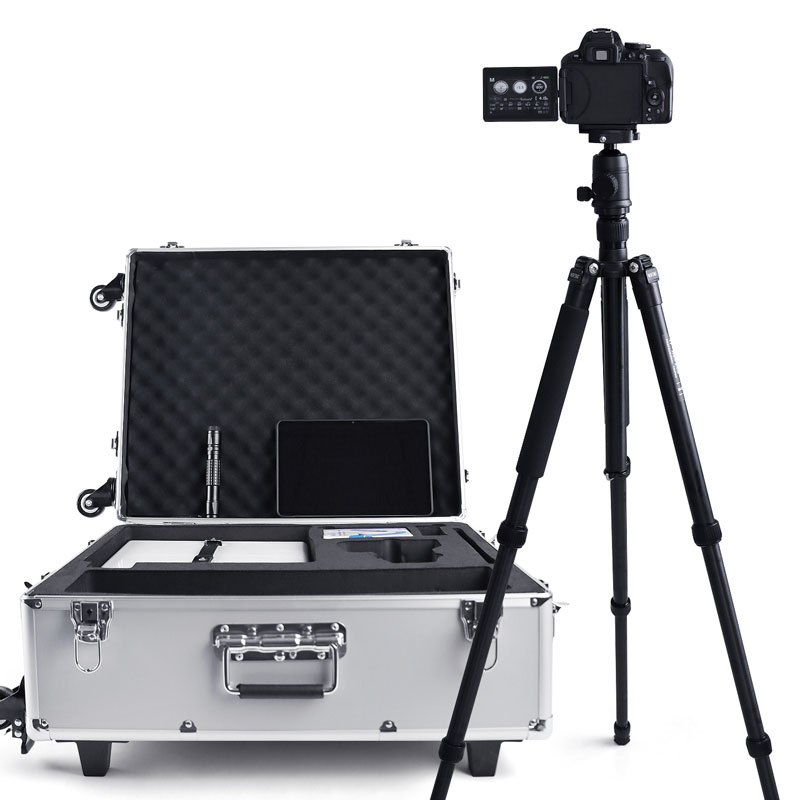

Model:FT-EL3
Brand:fengtu
Electroluminescence test product introduction:
The Electroluminescence test uses EL (electroluminescence) to detect defects such as hidden cracks, virtual marks, black spots, belt marks, and diffusion anomalies of batteries.Electroluminescence test is used for internal defect detection of photovoltaic solar panels, which can better help users complete product quality inspection to control production and installation risks.
Electroluminescence testEL3 high-sensitivity detection device has higher imaging detection accuracy and is more prominent in N-type half-piece component testing, and is equipped with a larger capacity EL testing power supply to help users meet the long-term detection needs of different component power and power station scenarios.
EL3 also has multi-component imaging capabilities, which can complete synchronous imaging of 1 to 2 groups of photovoltaic panels, with higher image quality and faster detection speed.It is the first choice equipment for photovoltaic power station detection business.
Electroluminescence test application scenario:
EL3 is suitable for photovoltaic power station components arrival inspection and component testing on brackets after installation, as well as component quality inspection in warehouses/laborries/factories.It can be equipped with string power supply to realize multi-component string testing.
Electroluminescence test can identify defect types:
Hidden crack | Fragment | Fragments | Break the gate | Black heart | False welding | Hot spots |
Process pollution | Inefficient film | Black border | sintering | Over-imposed | perforation | pid |
Electroluminescence test product features and advantages:
1.High-sensitivity infrared camera with clearer image analysis
2.Full-time dark light automatic focus module has better focusing performance at night
3.Check and download the detection and detection data of wireless control equipment in networked network
4.Programmable constant current power supply field detection achieves 24-hour uninterrupted testing
5.The tablet can wirelessly control the operation of the device and view the detection results
6.On-site inspection of large-capacity energy storage power supply can be tested without any preparation
7.Multi-angle testing of components after installation of three-meter carbon fiber tripod is more convenient
8.Wireless remote operation test of the whole machine, and the entire project can be completed by one person
9.Three-proof trolley case carrying and transporting light and safe
Electroluminescence test application field:
Scene | Factory components, warehouse components, power station field components, string testing |
test | Daytime: outdoor anti-infrared dark room test; indoor sunlight environment test Night: direct tripod test, light and moonlight have no effect |
Object | Crystal silicon components, film components (customizable) |
quantity | Single-piece component imaging detection |
Electroluminescence test optional accessories configuration:
String camera | 45 million pixels, 1 to 24 components string test |
String power supply | 1500V imported program-controlled power supply, 1 to 36 components synchronously powered |
Anti-infrared darkroom | 2500x2500x1500mm daytime detection module |
Backup power supply | Output 60V10A, AC220V input, 1.5kg |
Electroluminescence test standard specification parameters:
Module | Configuration | Specification |
Camera module | Pixels | 24.76 million pixels (high sense) |
Resolution | 6000x4000 | |
chip | 23.5x15.6mm, CMOS sensor | |
Infrared chip | Lailx10s Germanium chip 99.9% infrared refractive index | |
Accuracy | 0.5.0mm/pixel | |
Detection speed | 0.1~30s adjustable | |
Weak current test | Can present clear hidden cracking imaging at 3A weak current | |
Light shielding | Lights, moonlight, starlight, indoor light, sunlight below 300 irradiance has no effect on the test | |
Test area | 4000mm*3000mm | |
Synchronous imaging | 1~2 components | |
Lens | 18mm wide-angle infrared lens | |
Focus Mode | Full-time dark light autofocus | |
Battery | 980mah | |
Memory card | 32GB | |
Data line | 10cm | |
Power supply module | capacity | 20AH |
Battery | High-performance lithium-ion battery | |
Output current | 8A | |
Current Accuracy | 0.1A | |
Output voltage | 70V | |
Voltage Accuracy | 0.1V | |
Load power | 100W~700W; upper limit is not higher than 800W | |
Number of tests | 800~1000 photovoltaic panels | |
control Panel | LED digital display program control panel | |
Functional settings | Delay power outage function | |
Programming module | Remote control wireless control detection power on | |
Steady-state module | The output current and voltage of the constant power supply are not subject to change in power magnitude | |
Circuit protection | Short circuit protection, circuit breaker protection, current backflow protection, overheating protection, electrostatic protection, current and voltage adaptive matching photovoltaic panels | |
Power on | 10cm AC three-hole input line | |
DC line | 5m DC output line, MC4 port docking component | |
computer | Tablet PC | 128G, 10.5 inches |
Wi-Fi | 2.4G | Built-in 2.4GWi-Fi wireless control module |
4G | High-performance Wi-Fi controller, 150 control range | |
software | Detection control | Wireless control: camera detection |
Camera control | Adjustable camera exposure time, ISO, aperture, etc. | |
Image Management | View original image, enlarge the picture, compare the album, download | |
Bracket system | Test bracket | 2.6m carbon fiber bracket |
Testing gimbal | 720 degrees rotation | |
Positioning module | Detection and positioning | Cross laser positioning instrument, which quickly locates the rear component position on the bracket, can improve detection efficiency several times |
Usage environment | Desert, plateau, roof, hills, hillsides, factories, roofs, snow, greenhouses, agricultural light complementary, fish light complementary, scenery complementary, and other environments | |
Quality assurance after-sales service | 1-year warranty, 24H response, 72H fault solution, spare parts coordination |
Electroluminescence test configuration manifest:
Serial number | name | EL3 specifications | quantity | unit |
1 | EL Camera | 24 million infrared camera, full-time dark light automatic focus, high-sensitivity infrared | 1 | tower |
2 | EL infrared lens | 18mm wide-angle infrared lens; accuracy 0.8mm | 1 | tower |
3 | Tablet PC | 128G tablet | 1 | tower |
4 | Wi-Fi transmission module | Built-in 2.4G Wi-Fi module | 1 | set |
5 | Wi-Fi control module | 4G Wi-Fi software control module; 150-meter wireless control | 1 | set |
6 | Data cable/charger | standard | 1 | set |
7 | Camera battery | standard | 2 | set |
8 | Test bracket | 3m carbon fiber tripod | 1 | set |
9 | Testing gimbal | 720 gimbal | 1 | tower |
10 | EL-DC smart mobile power supply | 20AH energy storage, 70V, 700W, constant current and constant voltage output, program control, battery life of 800~1000 components, wireless control power-off | 1 | tower |
11 | Power on | 5 meters | 1 | root |
12 | Detection positioning device | Cross laser positioning, fast positioning and detecting component position | 1 | set |
13 | Equipment trolley box | Special three-proof instrument trolley case; | 1 | set |
14 | LX-APP management software | Internet of Things wireless detection, camera parameter adjustment; original image viewing, wireless detection, wireless image transmission, image download | 1 | set |
15 | Windows Software | Automatic detection of detection, defect classification recognition and saving, folder date pipeline, statistics, gain, screenshot, camera parameter adjustment, professional management desktop software | 1 | set |
* | Applicable scenarios | Test before installation of photovoltaic power station; test of components on brackets |
