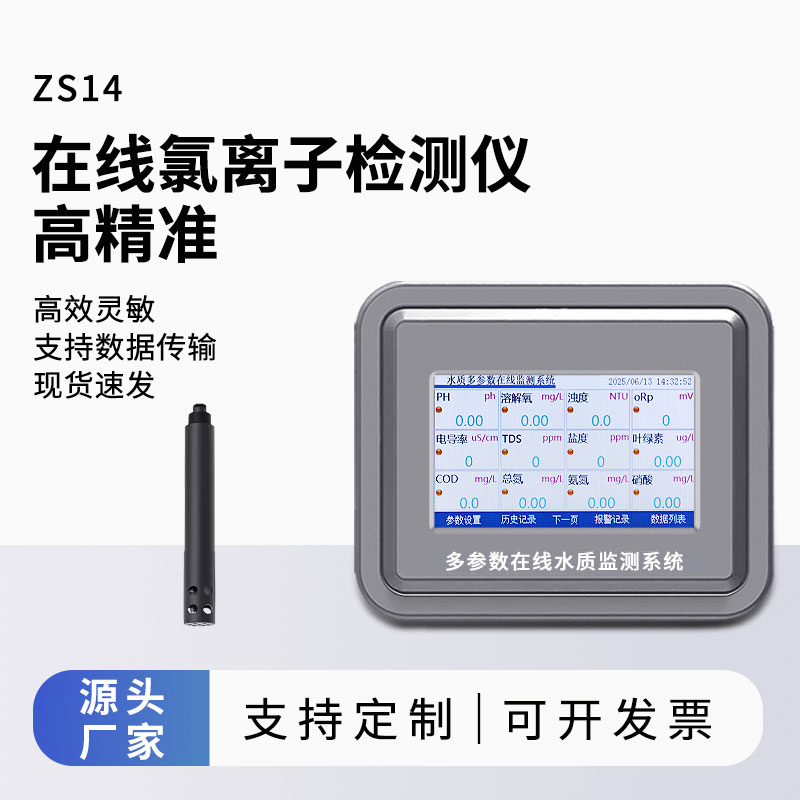

Online Chloride Ion Meter

Online Chloride Ion Meter

Model:FT-ZS14

Brand:fengtu

Online Chloride Ion Meter is suitable for measuring the chloride ion concentration in liquids, and is used in rivers, lakes, waterworks and industrial and mining enterprises.
  • Product details
  • Related products
  • Related articles

1. Online Chloride Ion Meter Product Introduction

Online Chloride Ion Meter is suitable for measuring the chloride ion concentration in liquids, and is used in rivers, lakes, waterworks and industrial and mining enterprises.ZS14 Online Chloride Ion Meter is an instrument capable of online monitoring of chloride ions. It integrates chloride ion sensors and measurement module communication storage, and can quickly and accurately record key parameters in water bodies. At the same time, the instrument supports the expansion of water quality multi-parameter sensors, including but not limited to pH, dissolved oxygen (DO), conductivity, turbidity, temperature, ammonia nitrogen, etc., which can be combined and configured according to different needs and applications, record and store historical monitoring data, alarm history records, and support historical data export.xlsx. The RS485 interface supports the MODBUS-RTU communication protocol to facilitate users to freely communicate with PLC, DCS, configuration software, DTU and other devices to connect and transmit data.

2. Application fields of Online Chloride Ion Meter

Online Chloride Ion Meter is widely used in monitoring and controlling various water bodies, including but not limited to the following areas:

1. Water plant: used to monitor the pH value, dissolved oxygen, turbidity and other parameters of tap water to ensure the safety and hygiene of tap water.

2. Groundwater monitoring: used to monitor groundwater parameters such as pH value, conductivity, temperature, etc., so as to detect and solve water quality problems in time.

3. River and lake monitoring: used to monitor the water quality of rivers and lakes, such as dissolved oxygen, turbidity, ammonia nitrogen and other parameters, so as to take timely pollution control measures.

4. Ocean monitoring: used to monitor the water quality of the ocean, such as salinity, dissolved oxygen, temperature and other parameters, so as to timely detect and control marine pollution.

5. Sewage treatment: used to monitor sewage water quality parameters, such as pH, COD, ammonia nitrogen, etc., in order to control and adjust the sewage treatment process.

6. Industrial production: used to monitor water quality in industrial production processes, such as pH, conductivity, dissolved oxygen and other parameters, so as to adjust the process in time and ensure product quality.

7. Scientific research: used for water quality monitoring in the field of scientific research, such as lake eutrophication, climate change, etc.

3. Technical Features of Online Chloride Ion Meter

1. High reliability: suitable for long-term work in the field environment, stable measurement and strong anti-interference ability.

2. Flexible and portable: Each probe can be freely combined, replaced independently, and plug and play.

3. Scalability: Various sensors can be freely combined.

4. Multiple applications: on-site rapid measurement, emergency monitoring, or long-term online monitoring of groundwater, river water, lake water, and urban pipe network water.

5. Tough shell: ABS+PC material, corrosion-resistant, can work normally for a long time.

6. Compact structure: can be installed in small places.

7. Communication connection: RS485 expansion interface, master/slave interface isolation and independent communication.

4. Technical Parameters of Online Chloride Ion Meter

Display Output4.3-inch touch screen with strong LED backlight, can be operated under direct sunlight
power supplyDC power supply: DC12V
Power consumptionThe power consumption of the instrument is about 12V/1W
Sound Outputbuzzer
Communication ProtocolStandard RS485 Modbus-RTU protocol and device master/slave transmission channel support
Main MaterialsABS+PC material
Storage temperature-20 to 70°C
Operating temperature-10 to 50°C
Protection levelIP65
size175mm*140mm*49mm(length×width×height)
weightAbout 0.5KG

5. Online Chloride Ion Meter Sensor Configuration (optional)

Serial numbernameMeasuring rangeprincipleMeasurement accuracyConfigurationRemark
1temperature0~50℃High-precision digital sensor±0.3℃

2pH0~14 (ph)Electrochemistry (Salt Bridge)± 0.1PH

3ORP-1500mv~1500mvElectrochemistry (Salt Bridge)± 6mv

4Conductivity0~5000uS/cmContact electrode method± 1.5%

5Turbidity0~40NTU (low turbidity)Scattered light method± 1%
Optional
0~1000NTU (medium turbidity)Scattered light method± 1%
0~3000NTU (high turbidity)Scattered light method± 1%
6Dissolved oxygen0~20mg/LFluorescence lifetime method± 2%

7Ammonia nitrogen0~100mg/lIon Selective Electrode Method±1mg

8Suspended Matter0~2000mg/LScattered light method±5% (depending on sludge homogeneity)

9Residual chlorine0~5.00 mg/LIon Selective Electrode Method±5% of reading

10Chloride ion0-3500.0mg/LIon Selective Electrode Method±5%
11Total hardness0~1000.0mg/LIon Selective Electrode Method±10% of reading

12cod0~500mg/LUV254 absorption method±5%
COD and chlorophyll are equipped with automatic cleaners to prevent biological attachment and avoid light window pollution to ensure long-term monitoring is still stable; the automatic cleaning time and cleaning times can be set, and the power consumption is 0.7W
13Chlorophyll0~400ug/LFluorescence methodR2>0.999
