Model:FT-FD2S
Brand:fengtu

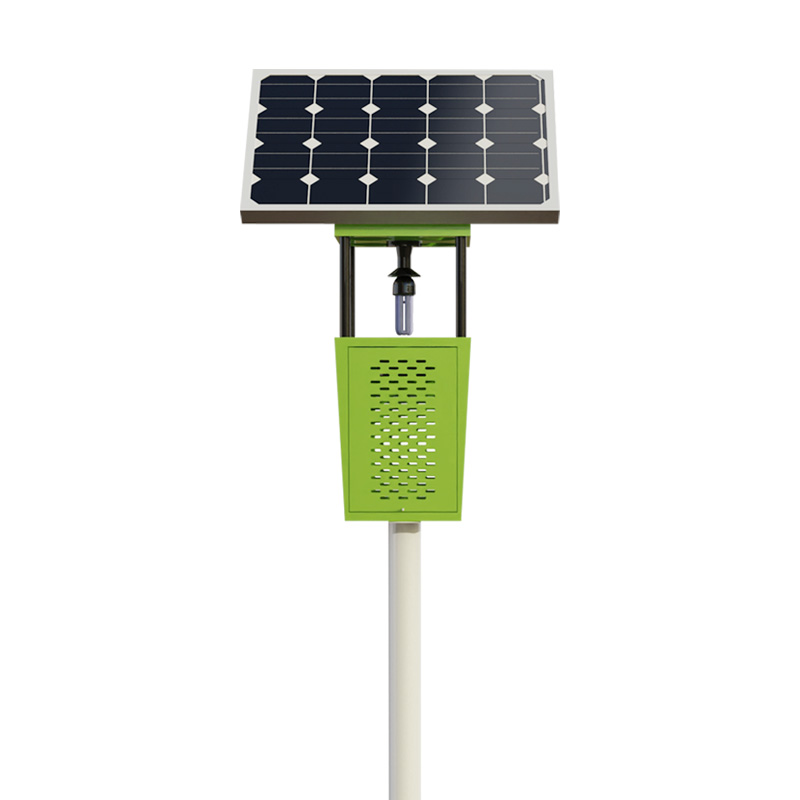

1.IoT Insecticidal Lamp Product Overview
The IoT Insecticidal Lamp is an insect-killing device based on Internet of Things technology, which uses light sources to trap pests, and the data can be uploaded to the iot cloud platform.IoT Insecticidal Lamp is a new type of environmentally friendly insecticidal device that combines traditional insecticidal lamps with modern technology. It uses insect-attracting light sources to attract insects and capture or eliminate them through device mechanisms. It can kill insects of all sizes, effectively control pests, and help improve the level of green pest control.
2. IoT Insecticidal Lamp Application Field
IoT Insecticidal Lamp can be widely used in agriculture, forestry and horticulture, animal husbandry, urban and rural environmental sanitation. It can also effectively improve the pest control effect in farmland, vegetable gardens, orchards and other fields. It has light control function and duration setting.
3. Working Principle of IoT Insecticidal Lamp
IoT Insecticidal Lamp uses light waves to lure pests to the lamp, and then the fan rotates to create a negative pressure cyclone that sucks the insects into the collector to dry them out, achieving the purpose of killing insects. It is based on solar panels, stores electricity during the day, and provides power to the insecticidal lamp at night, luring pests to the light source.
4. IoT Insecticidal Lamp Features
1. It uses insect-attracting light source, wind suction and negative pressure to kill insects, which is not affected by the size of the insect body and can kill many types of insects over a wide range.
2. Light control mode: automatically turn off the light during the day and automatically turn on the light at night, and the working time can be set.
3. Time control mode: automatically turn on the light during the time period and automatically turn off the light outside the time period; in sleep mode, the device turns off the light but still communicates.
4. Normal work in rainy days: With waterproof design, it can work as usual even in rainy days.
5. The structure is simple, consisting of two parts: the lamp body and the bracket. The whole machine is light and easy to install and transport.
6. Large insect storage box. IoT Insecticidal Lamp uses a pluggable net bag board, which is easy to disassemble and replace. The insect storage box has a large space and can collect more insects, without frequent cleaning and emptying.
7. The control radius of a single lamp in farmland areas shall not be less than 120m, and the control radius of a single lamp in forest areas shall not be less than 80m.
5. IoT Insecticidal Lamp Technical Parameters
Version | single vision | Network version | |
Light source parameters | wavelength | 320nm-680nm | |
power | 15W | ||
Fan parameters | powered by | 12V | |
power | 4W | ||
Power consumption | ≤20W | ||
data communication | 4GCat1 | ||
~ | Fan status upload | ||
~ | Insect trap status upload | ||
~ | Battery voltage upload | ||
~ | *GNSS positioning upload | ||
~ | *Network control | ||
~ | *SMS notification | ||
Solar power supply system | *MPPT charging | ||
Continuous rainy days for 2-3 days | |||
Battery parameters | type | *lithium battery | |
Voltage | *12V | ||
capacity | *20Ah | ||
Solar panel parameters | size | 690*505*30mm | |
power | 50W | ||
Service life | ≥ 3 years | ||
Overall size of the equipment | Overall height | 2530mm | |
Device Width | 690mm(max)300mm(min) | ||
Base height | 1500mm | ||
Base pipe diameter | Φ73 |
6. IoT Insecticidal Lamp Configuration List
Host, pole, solar panel, assembly screw package, antenna package (for networked version), ground cage or expansion screws (optional)
