Model:FT-FD1S
Brand:fengtu

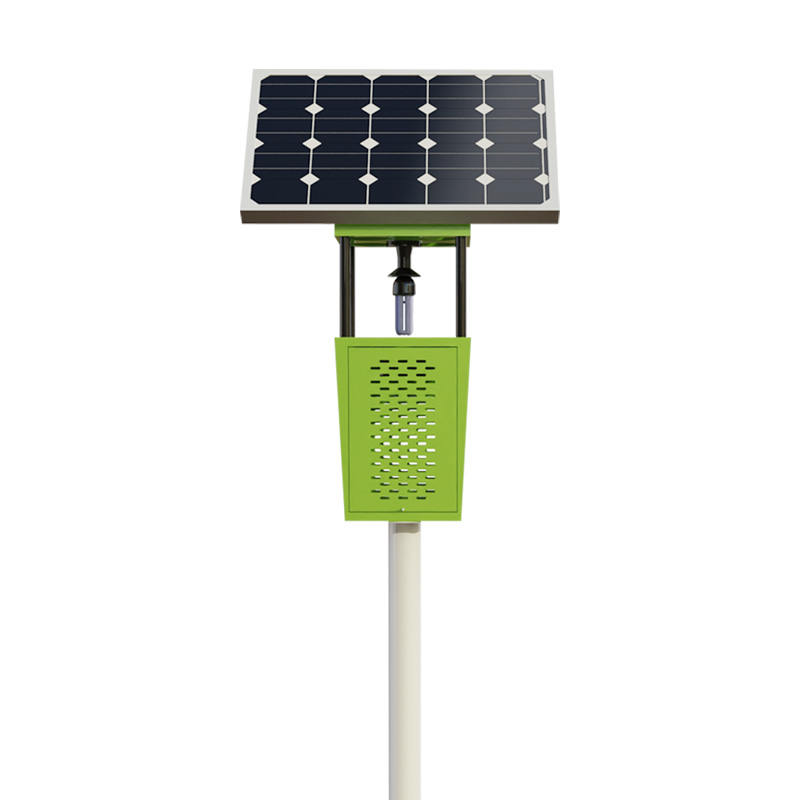

1.Air Suction Insecticide Lamp Product Overview
Air Suction Insecticide Lamp induced insects by the tube, and used strong suction to suck the pests into the lamp, and then dried the pests by the fan.Air Suction Insecticide Lamp is a new type of environmentally friendly insecticide equipment that combines traditional insecticidal lamps with modern technology. It uses insect-attracting light sources to attract insects and capture or eliminate them through the device mechanism. It can kill insects of all sizes, effectively control pests, and help improve the level of green pest control.
2. Application fields of Air Suction Insecticide Lamp
Wind-suction insecticidal lamps can be widely used in agriculture, forestry and horticulture, animal husbandry, urban and rural environmental sanitation. They can also effectively improve the pest control effects in farmland, vegetable gardens, orchards and other fields. They have light control functions and duration settings.
3. Working Principle of Air Suction Insecticide Lamp
The Air Suction Insecticide Lamp uses light waves to lure pests to the lamp, and then the fan rotates to create a negative pressure cyclone that sucks the insects into the collector, where they are dried and dehydrated to achieve the purpose of killing insects. It is based on solar panels, which store electricity during the day and provide power to the insecticidal lamp at night, luring pests to fly towards the light source.
4. Air Suction Insecticide Lamp Features
1. It uses insect-attracting light source, wind suction and negative pressure to kill insects, which is not affected by the size of the insect body and can kill many types of insects over a wide range.
2. Light control mode: automatically turn off the light during the day and automatically turn on the light at night, and the working time can be set.
3. Time control mode: automatically turn on the light during the time period and automatically turn off the light outside the time period; in sleep mode, the device turns off the light but still communicates.
4. Normal work in rainy days: With waterproof design, it can work as usual even in rainy days.
5. The structure is simple, consisting of two parts: the lamp body and the bracket. The whole machine is light and easy to install and transport.
6. Large insect storage box. The wind-suction insect killer lamp uses a pluggable net bag board, which is convenient for disassembly and replacement. The insect storage box has a large space and can collect more insects, without frequent cleaning.
7. The control radius of a single lamp in farmland areas shall not be less than 120m, and the control radius of a single lamp in forest areas shall not be less than 80m.
5. Technical Parameters of Air Suction Insecticide Lamp
Version | single vision | Network version | |
Light source parameters | wavelength | 320nm-680nm | |
power | 15W | ||
Fan parameters | powered by | 12V | |
power | 4W | ||
Power consumption | ≤20W | ||
data communication | 4GCat1 | ||
~ | Fan status upload | ||
~ | Insect trap status upload | ||
~ | Battery voltage upload | ||
~ | *GNSS positioning upload | ||
~ | *Network control | ||
~ | *SMS notification | ||
Solar power supply system | *MPPT charging | ||
Continuous rainy days for 2-3 days | |||
Battery parameters | type | *lithium battery | |
Voltage | *12V | ||
capacity | *20Ah | ||
Solar panel parameters | size | 690*505*30mm | |
power | 50W | ||
Service life | ≥ 3 years | ||
Overall size of the equipment | Overall height | 2530mm | |
Device Width | 690mm(max)300mm(min) | ||
Base height | 1500mm | ||
Base pipe diameter | Φ73 |
6. Air Suction Insecticide Lamp Configuration List
Host, pole, solar panel, assembly screw package, antenna package (for networked version), ground cage or expansion screws (optional)
