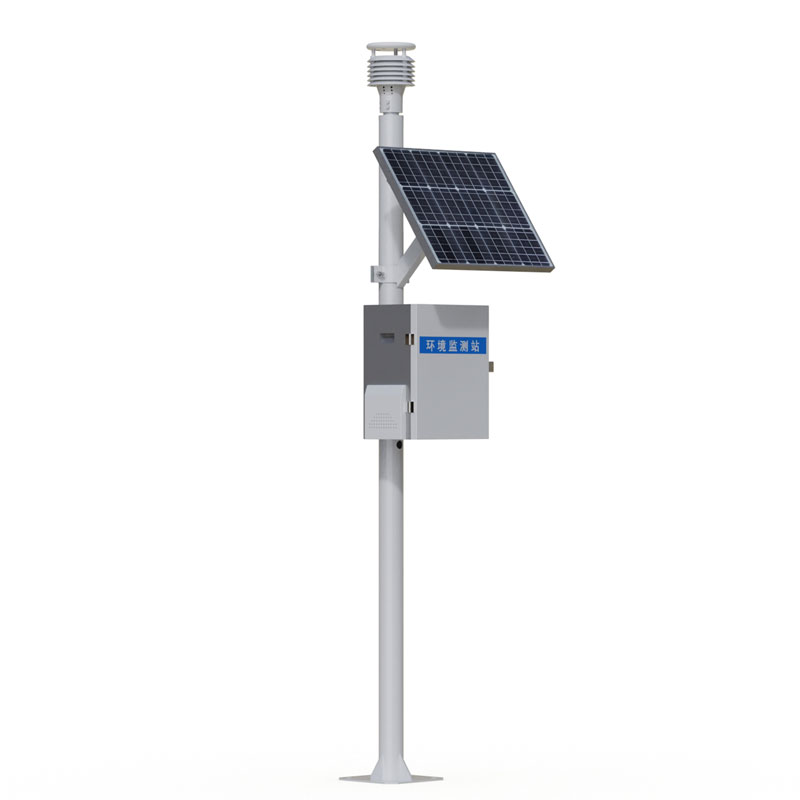

Outdoor Air Quality Monitor

1.Introduction to Outdoor Air Quality Monitor Products

The Outdoor Air Quality Monitor integrates a number of air quality monitoring parameters, and can also select multiple parameters to monitor outdoor air quality in real time.CQX8 Outdoor Air Quality Monitor is a highly integrated, low-power, fast installation and easy for field monitoring.

The equipment is debug-free and can be quickly arranged, and is widely used in meteorological, agriculture, forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

Compared with the traditional Outdoor Air Quality Monitor, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

The equipment innovatively uses an eight-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, noise, etc., and can realize 24-hour continuous online monitoring of outdoor meteorological parameters.

The eight parameters are output to the user at one time through the digital communication interface.

2.Outdoor Air Quality Monitor product features

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation, and avoid natural wind shading☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆

3.Integrated sensor with eight elements of wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, noise☆

4.GPRS is standard; it can be equipped with RJ45, Ethernet, 4-20ma, Lora transmissible transmission, 4G transmissible transmission, Bluetooth, 485 to USB and other transmission methods.

5.Two-meter carbon steel bracket, no flange required on the top to directly plug the sensor

6.The sensor shell is made of imported ASA material, which is more effective in resisting salt spray and other environments, and the protection level is above IP65

3.Outdoor Air Quality Monitor Technical Parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s+0.01V) resolution 0.01m/s;

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°;

3.Air temperature: measurement principle diode junction voltage method, -40-80℃ (±0.3℃ (25℃)), resolution 0.01℃;

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH (20%~80%)), resolution: 0.01%RH;

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100Hpa (±0.25%), resolution 0.1hpa;

6.PM2.5: Measurement of principle light scattering, 0-1000ug/m3 (±10% (<500 micrograms)), resolution 1ug/m³;

7.PM10: Measure the principle light scattering, 0-1000ug/m3 (±10% (<500 micrograms)), resolution 1ug/m³;

8.Noise: measurement principle capacitive type, 30-120dB (±1.5dB), resolution 0.1dB;

9.Collector power supply interface: GX-12-4P, input voltage 8-16V, with RS485 output json data format

10.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

11.Solar power supply and equipped with lead-acid batteries, optional 30W 20AH/50W 40AH/100W 100AH.Charging controller: 150W, MPPT automatic power point tracking, efficiency is increased by 20%.

12.Data upload interval: 1 minute-1000 minutes adjustable

13.Android 7-inch touch screen, screen resolution: 1024*600 RGB LCD (optional)

14.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

15.The manufacturer has a computer software registration certificate

16.The manufacturer is a 3A credit enterprise

4.Introduction to Outdoor Air Quality Monitor computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.The storage time can be set by itself.The acquisition time can be set by itself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

5.Introduction to Outdoor Air Quality Monitor Android APP

1.Android stand-alone version of data reception, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.Json data is automatically added to the device, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, and export tables, support curve display and single data point viewing

6.Support data post-processing function

7.Support external running of javascript scripts

6.Introduction to Outdoor Air Quality Monitor Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage, stable and reliable, easy to expand, and load balanced

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
