best weather stations

1.Best weather stations product introduction

best weather stations are used to monitor wind speed, wind direction, temperature, humidity, air pressure, light, optical rainfall, pm2.5, pm10, noise, and other meteorological elements.best weather stations is a highly integrated, low-power, fast installation and easy for field monitoring.

The equipment is debug-free and can be quickly arranged, and is widely used in meteorological, agriculture, forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

Compared with the traditional ultrasonic meteorological station, our product has overcome the demand for high -precision timers, and avoids the problem of measurement caused by the sensor starting delay, demodulation circuit delay, and temperature changes.

The equipment innovatively adopts a ten-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, optical rainfall, pm2.5, pm10, noise, etc., and can realize outdoor meteorological parameters 24-hour continuous online monitoring, and ten parameters are output to the user at one time through the digital communication interface.

2.Best weather stations product features

1.Hidden ultrasonic probe on the top cover to avoid interference of rain and snow accumulation, and avoid natural wind cover (practical new patent, patent number ZL 2020 2 3215713.x) ☆

2.The principle is the transmitting continuous frequency conversion ultrasonic signal.The relative phase is measured to detect the wind speed direction (invention patent, patent number ZL 2021 1 0237536.5) ☆

3.Temperature, humidity, wind speed, wind direction, atmospheric pressure, optical rainfall, light, pm2.5, pm10, and noise ten elements integrated sensor (utilatory model patent, patent number ZL 2020 2 3215649.5)☆

4.GPRS is standard; it can be equipped with RJ45, Ethernet, 4-20ma, Lora transmissible transmission, 4G transmissible transmission, Bluetooth, 485 to USB and other transmission methods.

5.Two meters of carbon steel brackets, the top without a flanges can be placed directly to the sensor (utility model patent, patent number ZL 2020 2 3211795.0)

6.The sensor shell is made of imported ASA material, which is more effective in resisting salt spray and other environments, and the protection level is above IP65

3.Best weather stations technical parameters

1.Wind speed: Measurement principle ultrasonic, 0 ～ 60m/s (± 0.1m/s) resolution 0.01m/s; (invention patent, patent number ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH), resolution: 0.01%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: Measurement principle light scattering, 0-1000ug/m³ (±10%), resolution 1ug/m³;

7.PM10: Measure the principle light scattering, 0-1000ug/m³ (±10%), resolution 1ug/m³;

8.Noise: measurement principle capacitive type, 30-120dB (±1.5dB), resolution 0.1dB;

9.Lighting: measurement principle photoelectric effect, 0-157286LUX (＜±3%), resolution 1lux;

10.Optical rainfall: measurement principle photoelectric, 0-4mm/min (≤±4%), resolution 0.01mm;

11.Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A

12.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

13.Solar power supply and equipped with lead-acid batteries, optional 30W 20AH/50W 40AH/100W 100AH.Charging controller: 150W, MPPT automatic power point tracking, efficiency is increased by 20%.

14.Data upload interval: 1 minute-1000 minutes adjustable

15.Android 7-inch touch screen, screen size: 1024*600 RGB LCD

16.The whole machine obtained the National Meteorological Metering Station Calibration Certificate

17.The whole machine obtained a utility model patent, patent number ZL 2020 2 3208599.8

18.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

19.The manufacturer has a computer software registration certificate

20.The manufacturer is a 3A-level credit enterprise

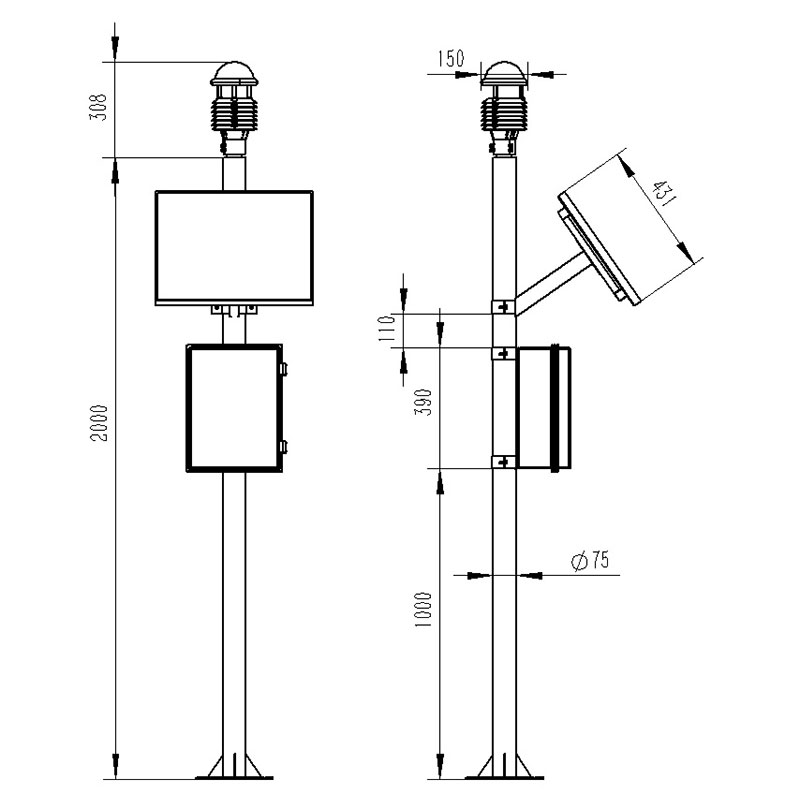

4.Best weather stations product size diagram

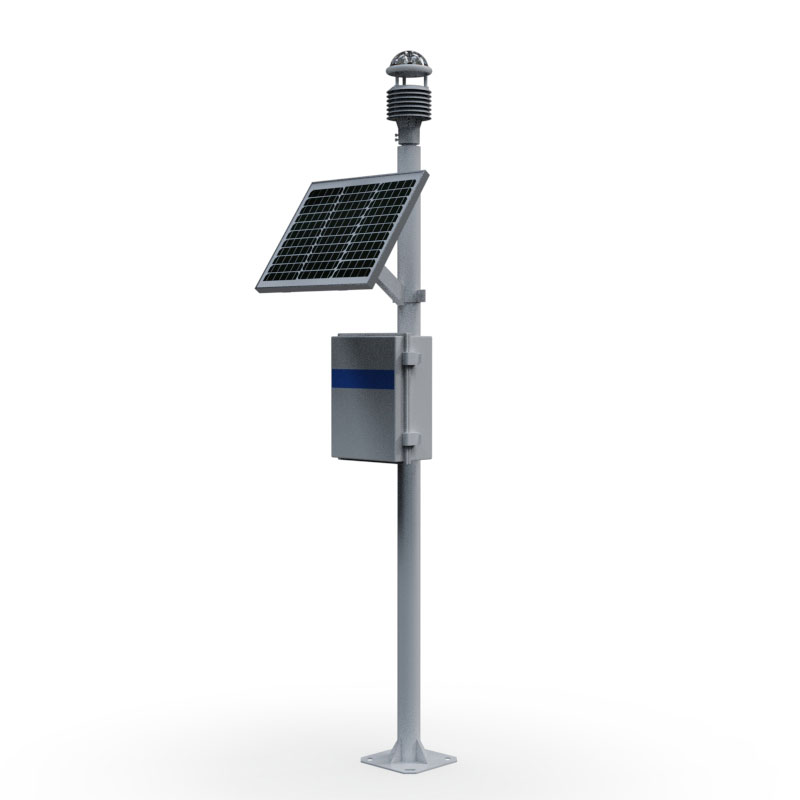

5.Best weather stations product structure diagram

6.Introduction to best weather stations computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.The storage time can be set, and the collection time can be set in the Modbus485 collection mode

5.Support self -service increase, delete, modify the protocol, name, icon, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

7.Introduction to best weather stations Android APP

1.Android stand -alone version data receiving, storage, viewing, analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.json data is automatically added to the device, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, export form, support curve display, single data point view

6.Support data post-processing function

7.Support external running of javascript scripts

8.Introduction to best weather stations cloud platform

1.CS architecture software platform, support mobile phone, PC browser direct observation, no additional installation software

2.Support multiple accounts and multiple devices to log in

3.Support real -time data display and historical data display dashboard

4.Cloud server and cloud data storage, stable and reliable, easy to expand, and load balanced

5.Support SMS alarm and threshold settings

6.Support map display and view equipment information.

7.Support data curve analysis

8.Support data export table form

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.After supporting data, processing function

11.Support external running JavaScript script
