1.Best weather station product introduction
best weather station enables you to view temperature, humidity, barometric pressure, wind speed, wind direction, rainfall, etc., and is a fully functional weather station. NQ14 best weather station is a highly integrated, low-power, fast installation and easy for field monitoring.
The device consists of five parts: meteorological sensor, collector, solar power supply system, pole support, and cloud platform.It is free of debugging and can be quickly arranged, and is widely used in meteorological, agriculture, forestry, scientific investigation and other fields.
2.Best weather station product features
1.Low-power collector: static power consumption is less than 50uA
2.Standard GPRS networking, support extended Bluetooth, and wired transmission
3.Seven-inch Android touch screen, version: 4.4.2, quad-core Cortex™-A7, 512M/4G
4.Support modbus485 sensor expansion
5.Solar charging management MPPT automatic power point tracking
6.Three-meter carbon steel bracket, two threaded screw connection
7.Send SMS alarm, send SMS to the specified mobile phone after exceeding the limit
8.Stainless steel material protective box, corrosion-resistant and oxidative-resistant, waterproof grade IP66
3.Best weather station technical parameters
1.Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A,
2.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V
3.Solar power supply and equipped with lead-acid batteries, optional 30W 20AH/50W 20AH/100W 100AH.Charging controller: 150W, MPPT automatic power point tracking, efficiency is increased by 20%.
4.Data upload interval: 1 minute-1000 minutes adjustable
5.Screen size: 1024*600 RGB LCD
6.Some sensor parameters
name | Measurement range | Resolution | Accuracy |
Wind speed | 0 ~ 30m/s | 0.01m/s | ±(0.1+0.03V)m/s |
wind direction | 0 ~ 360 ° (16 direction) | 1/16 | <3 ° (> 1.0m/s) |
Air temperature | -40-80℃ | 0.1 ℃ | ±0.3℃ (25℃) |
Air humidity | 0-100%RH | 0.10% | ±3%RH |
Atmospheric pressure | 30-110Kpa | 0.01Kpa | ±0.02Kpa (relative) |
rainfall | ≦ 4mm/min | 0.01mm | ± 0.2mm |
illumination | 0-20W LUX | 1lux | 5% |
carbon dioxide | 500-5000PPM | 1PPM | ±50PPM±3% of reading |
Soil temperature | -40~80℃ | 0.01℃ | ±0.5℃ |
Soil moisture | 0-100% | 0.01% | ±3% |
Soil conductivity EC | 0-20000us/cm | 10us/cm | ±5% |
Soil PH (electrode method) | 0-14 | 0.01 | ±0.1PH, ±0.1℃ |
Soil nitrogen, phosphorus and potassium | 0~1999mg/kg | 1mg/kg | ±2% |
Soil evaporation | 0~75mm | 0.1mm | ± 1% |
4.Best weather station cloud platform
1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.
2.Support multiple accounts and multiple devices to log in
3.Support real -time data display and historical data display dashboard
4.Cloud server and cloud data storage are stable and reliable, easy to expand, and load balancing.
5.Support SMS alarm and threshold settings
6.Support map display and view equipment information.
7.Support data curve analysis
8.Support data export table form
9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10.After supporting data, processing function
11.Support external running JavaScript script

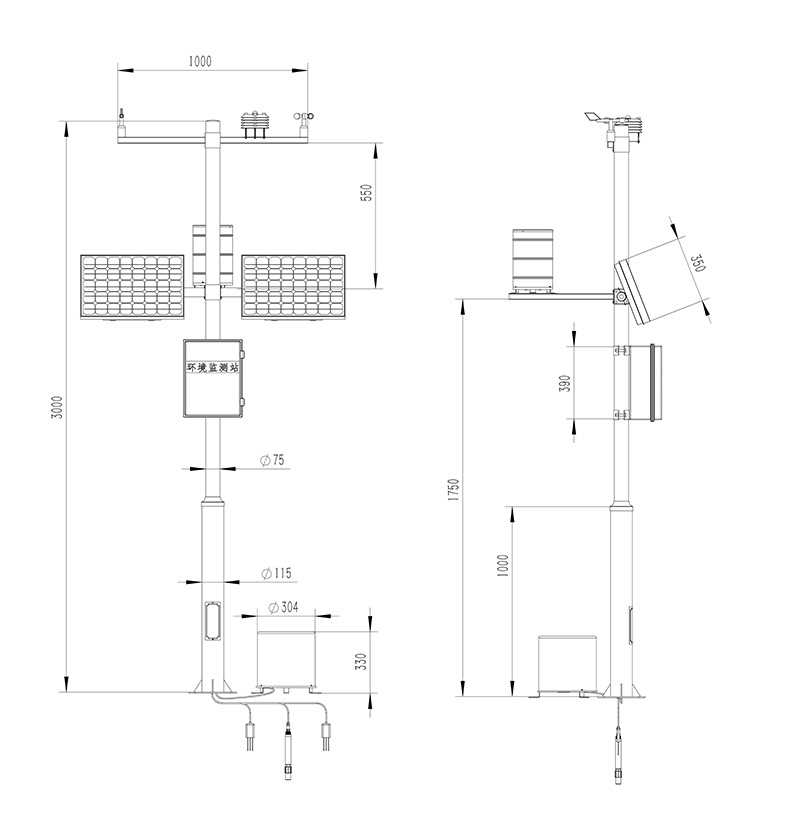

5.Best weather station product size diagram

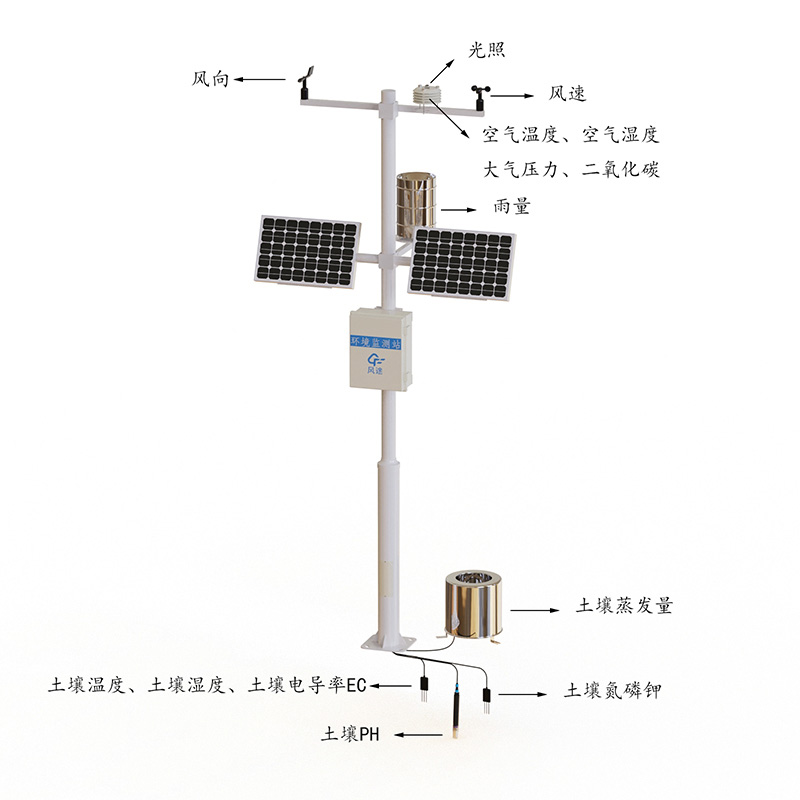

6.Best weather station product structure diagram
