best rated weather stations for home

1.Best rated weather stations for home product introduction

best rated weather stations for home can monitor wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, noise and other meteorological elements.best rated weather stations for home is a highly integrated, low-power, fast installation and easy for field monitoring.

The equipment is debug-free and can be quickly arranged, and is widely used in meteorological, agriculture, forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

Compared with the traditional ultrasonic meteorological station, our product has overcome the demand for high -precision timers, and avoids the problem of measurement caused by the sensor starting delay, demodulation circuit delay, and temperature changes.

The equipment innovatively uses an eight-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, noise, etc., and can realize 24-hour continuous online monitoring of outdoor meteorological parameters.The digital communication interface outputs eight parameters to the user at one time.

2.Best rated weather stations for home product features

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Eight-element integrated sensor of wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, noise (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.GPRS is standard; it can be equipped with RJ45, Ethernet, 4-20ma, Lora transmissible transmission, 4G transmissible transmission, Bluetooth, 485 to USB and other transmission methods.

5.Two-meter carbon steel bracket, no flange required on the top to directly plug the sensor (Utility model patent, patent number ZL 2020 2 3211795.0)

6.The sensor shell is made of imported ASA material, which is more effective in resisting salt spray and other environments, and the protection level reaches IP65 or above

3.Best rated weather stations for home technical parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Beijing Meteorological Bureau calibration certificate)

4.Air humidity: Measurement principle capacitor, 0-100%RH (± 3%RH), resolution: 0.1%RH; (Beijing Meteorological Bureau Calibration Certificate)

5.Atmospheric pressure: measurement principle pressure resistance, 300-1100HPa (± 0.25%), resolution 0.1HPa; (Beijing Meteorological Bureau Calibration Certificate)

6.PM2.5: Measurement principle light scattering, 0-1000ug/m3 (±10%)

7.PM10: Measure the principle light scattering, 0-1000ug/m3 (±10%)

8.Noise: Capacitive measurement principle, 30-120dB (±1.5dB)

9.Collector power supply interface: GX-12-3P plug, input voltage 5V, RS232 output JSON data format, collector power supply: DC5V ± 0.5V peak current 1A, 1A, 1A, 1A, 1A, 1A, 1A

10.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

11.Solar power supply, configuration of lead -acid batteries, can be equipped with 30W 20AH/50W 40AH/100W 100AH.Charging controller: 150W, MPPT automatic power point tracking, increase efficiency by 20% by 20%

12.Data upload interval: 1 minute-1000 minutes can be adjusted

13.7-inch Android touch screen, screen size: 1024*600 RGB LCD

14.Obtain the National Meteorological Metering Station Calibration Certificate for the whole machine

15.The whole machine obtained a utility model patent, patent number ZL 2020 2 3208599.8

16.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

17.Production enterprise has a computer software registration certificate

18.Production enterprise is a 3A -level credit enterprise

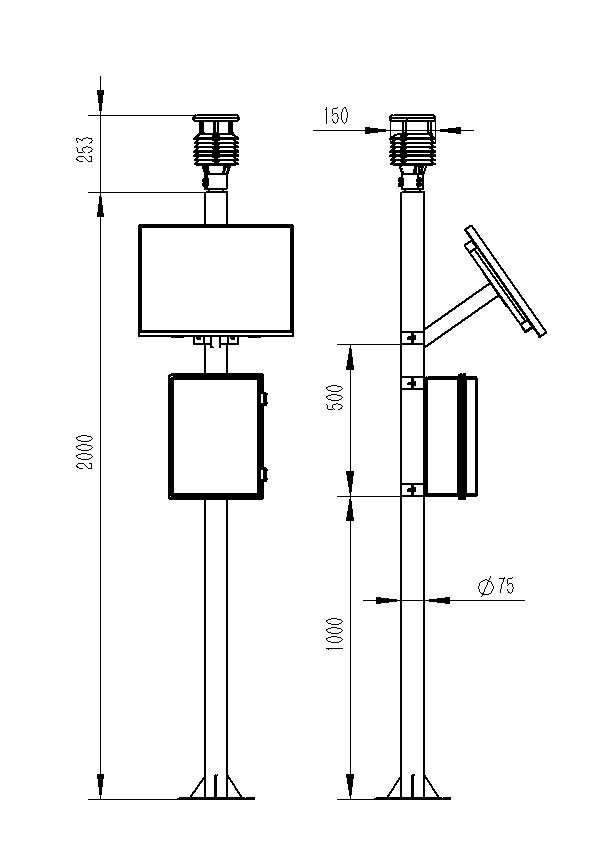

4.Best rated weather stations for home product size diagram

5.Best rated weather stations for home product structure diagram

6.Introduction to best rated weather stations for home computer software

1.PC stand -alone version data receiving, storage, viewing, analysis software

2.Support serial port data receiving, processing, display

3.Support JSON string, MODBUS485 and other communication methods

4.You can set the storage time, and you can set the collection time in the Modbus485 collection mode

5.Support self -service increase, delete, modify the protocol, name, icon, etc.

6.After supporting data, processing function

7.Support external running JavaScript script

7.Introduction to best rated weather stations for home Android APP

1.Android stand -alone version data receiving, storage, viewing, analysis software

2.Support Bluetooth data receiving

3.Software background receiving and processing after the mobile phone is dormant

4.JSON data automatically adds device, MODBUS device supports code scanning and adding device

5.Support historical data viewing, analysis, export form, support curve display, single data point view.

6.After supporting data, processing function

7.Support external running JavaScript script

8.Introduction to best rated weather stations for home cloud platform

1.The CS architecture software platform supports direct observation of mobile phones and PC browsers, and no additional installation software is required.

2.Support multi -account and multi -device login

3.Support real -time data display and historical data display dashboard

4.Cloud server, cloud data storage, stable and reliable, easy to expand, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and view equipment information.

7.Support data curve analysis

8.Support data export form form

9.Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc.

10.After supporting data, processing function

11.Support external running JavaScript script
