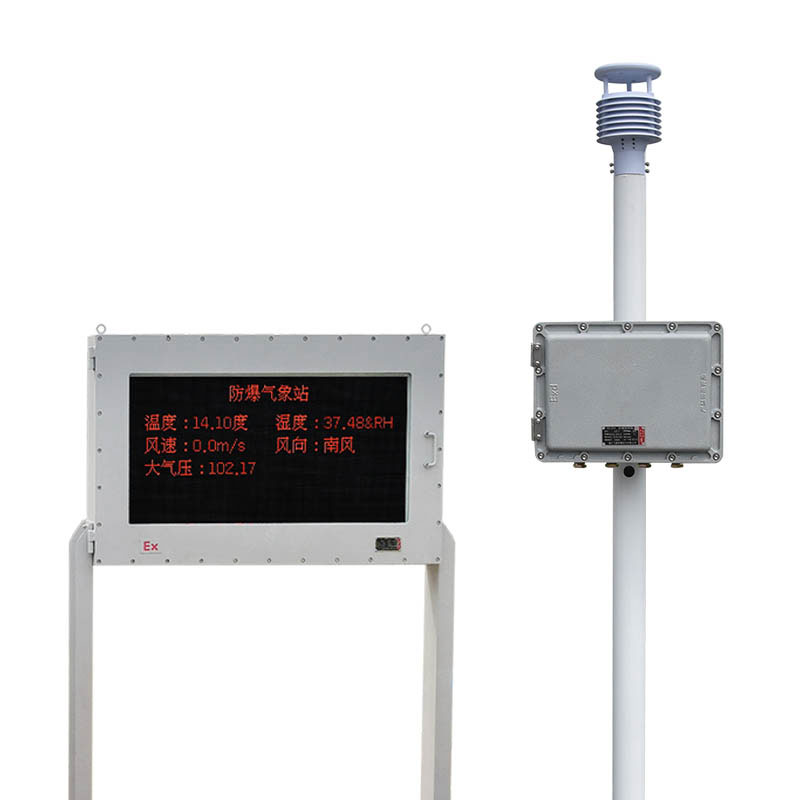

Explosion proof weather station

1.Explosion proof weather station product introduction

Explosion proof weather station with high explosion-proof performance, specially designed for oil depot, chemical plant, petrochemical, gas storage and other scenarios.Explosion proof weather station is an integrated weather station developed and produced by Fengtu IoT according to market demand for special places such as chemical plants and oil depots.It integrates data collection, storage, communication and display, and displays data directly on the explosion-proof screen in real time through wired communication.

The explosion proof weather station adopts the design concept of high protection level such as anti-corrosion, explosion-proof, waterproof, shockproof and dustproof, which can meet the use requirements of chemical plants, oil depots, tunnels, mines and other scenes.

2.Features of Explosion Proof Weather Station

1.The top cover hides the ultrasonic probe to avoid interference from rain and snow accumulation and avoid being blocked by natural wind (utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to emit a continuous frequency-variable ultrasonic signal and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Integrated sensor for wind speed, wind direction, air temperature, humidity and atmospheric pressure (utility model patent, patent number ZL 2020 2 3215649.5)☆

4.RS232 transmission to the explosion-proof screen, the inner screen size is 1m*0.5m, and it is composed of 9 P10 unit boards.

3.Technical parameters of explosion proof weather station

1) Wind speed: 0~60m/s (±0.1m/s); (invention patent, patent number ZL 2021 1 0237536.5)

2) Wind direction: 0~360° (±2°); (invention patent, patent number ZL 2021 1 0237536.5)

3) Air temperature: -40℃～85℃（±0.3℃）；（Calibration certificate from Beijing Meteorological Bureau）

4) Air humidity: 0~100%RH (±2%RH); (Calibration certificate from Beijing Meteorological Bureau)

5) Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate from Beijing Meteorological Bureau)

6) Standalone data storage: no less than 500,000 records;

7) Power consumption: 202W

8.The manufacturing company has ISO quality management system, environmental management system and occupational health management system certification

9) The manufacturer has a computer software registration certificate

10) The manufacturer has Ex ia IIC T4 Ga high-level explosion-proof certificate

11) The manufacturer is a 3A credit enterprise

12) The equipment has passed GB3836.1-2010 Explosive Environment Part 1: General Requirements for Equipment

13) The equipment has passed GB3836.4-2010 Explosive atmospheres Part 4: Equipment protected by intrinsic safety type "i"

4.Explosion proof weather station features

1.Integrated structural design, easy installation and disassembly;

2.The sensor housing is made of ASA material, which is corrosion-resistant and oxidation-resistant;

3.Support customization, and can flexibly configure monitoring elements according to user needs;

4.PC/LED explosion-proof screen with multiple monitoring modes and wired transmission

5.Five-proof design: waterproof, explosion-proof, dust-proof, shock-proof and corrosion-proof;

6.Standard modbus protocol, supports multiple background protocol docking, providing convenience for customers;

8.Low power consumption design, AC220V power supply;

5.Explosion proof weather station host computer software introduction

1.PC stand-alone version of data receiving, storage, viewing and analysis software

2.Support serial port data reception, processing and display

3.Support json string, modbus485 and other communication methods

4.The storage time can be set by yourself, and the acquisition time can be set by yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

6.Explosion proof weather station equipment installation

1.Confirm the on-site working conditions and set the installation plan by our company

2.Easy installation, no need for professional operation, remote guidance is required for installation

3.The user does not need to prepare spare parts by himself.Our company will configure the equipment in detail and the equipment can be installed and used immediately after it arrives on site.
