time:2024-12-25 11:17:37 source:Weather Station viewed:1 time
1.Product introduction of sensors on roads
sensors on roads collect road traffic information, monitor road conditions, weather conditions, ice, snow and water on the road surface, and improve road safety.Sensors on roads use remote sensing technology to avoid damage to roads and avoid traffic interference caused by the installation of road weather stations.Multispectral measurement technology enables the accurate detection of the presence and thickness of ice, snow and water on road surfaces, while also enabling real-time monitoring of weather phenomena such as fog, rain and snow that affect traffic safety.
2.Sensors on roads function
l Detect water, snow and ice conditions on the road
l Long-distance remote sensing detection of road and bridge deck conditions
l Non-embedded installation is quick and easy
l Traffic flow and accident-prone areas
lRain and snow-prone areas
lLow maintenance cost

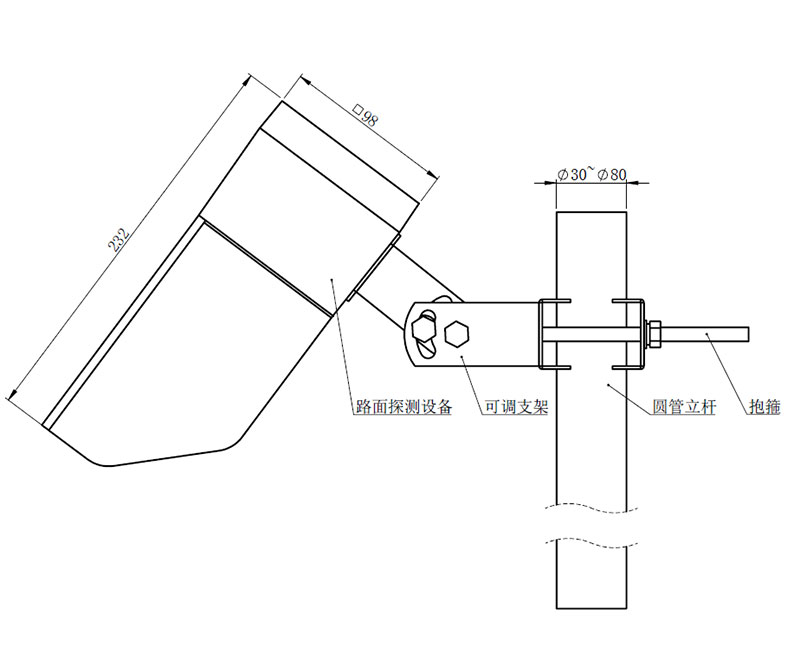

3.Sensors on roads product size chart
4.Main indicators of sensors on roads
model | FT-LM3 (discontinued) | FT-LM1 |
Detection distance and detection area diameter | 2-8 meters; 23cm | |
Installation angle to horizontal line | 30-80 degrees | |
Power supply and power consumption | DC12-24V; 0.6W | |
Operating temperature and humidity | Temperature: -40ºC to +60ºC; Humidity: 0 to 95% | |
Water thickness | - | 0-10mm |
Ice thickness | - | 0-2mm |
Snow thickness | - | 0-2mm |
Slippery degree | - | 0.01 (slippery)-0.82 (strong friction) |
pavement condition report | Dry, wet, wet, snow, ice, ice water mixture | |
Highway weather phenomena (optional) | Road temperature: -40ºC to +60ºC | |
Weather phenomena: rain; snow; heavy fog | ||
pavement materials | Concrete, asphalt pavement | |
communication | RS485, RS232 |
