Model:FT-WQX6
Brand:fengtu
1.Brief Introduction
FT-WQX series ultrasonic weather station is designed by the standard of WMO(World of Meteorological Orgnization). The instrument is widely used in meteorological monitoring, navigation, environmental protection, animal breeding, pier, bridge, tunnel etc. It can monitor wind speed, wind direction, ambient temperature, relative humidity, barometric pressure, rainfall, illumination, global radiation, PM2.5,PM10, CO, NO2, SO2, O3. We have 8models, each model is with different parameters, so you can choose anyone suitable for you. The weather station is developed based on the principle of ultrasound. Our FT-WQX series ultrasonic weather station is designed with new technology---phase demodulation and phase discrimination. Compared with the time-difference method(old technology), our device is more accurate and durable when using.
FT-WQX6 ultrasonic weather station is with 6 parameters, we adopt highly integrated system, it can simultaneously measure six meteorological parameters: Wind Speed, Wind Direction, Ambient Temperature, Relative Humidity, Barometric Pressure, Rainfall. It can make 24 hours continuous monitoring.
Compared with traditional weather station, we avoid the data delay from sensor start and demodulator circuit, and the data inaccuracy from temperature variation. Our new technology solves all the problems and makes the instruments more stable and accurate.
2.Technical Data
FT-WQX6 | ||||
Item | Range | Resolution | Accuracy | Principle |
Wind Speed | 0~60m/s | 0.01m/s | ±0.3m/s | Ultrasonic |
Wind Direction | 0~360° | 1° | ±2° | Ultrasonic |
Temperature | -40℃~60℃ | 0.01℃ | ±0.3℃ | Diode |
Humidity | 0~100%RH | 0.1%RH | ±3%RH | Capacitance |
Pressure | 300hPa~1100hPa | 0.01hPa | ±0.5%hPa | Piezoresistive |
Rainfall | 0~4mm/min | 0.1mm | ±5% | Optics |
Supply | DC12V | |||
Output | RS485(RS232, Option) | |||
Communication | Modbus-RTU | |||
Power | <1W | |||
Operation TEMP | -40℃~85℃ | |||
IP Grade | IP66 | |||
Material | ASA engineering plastic | |||
Net Weight | 0.6kg | |||
Packing Size | 385*250*220mm | |||
Option-1 | GPS | |||
Option-2 | Electronic Compass | |||
Patent |
| |||
Certificate | CE, RoHS, ISO9001, ISO14001 |
3.Features
Factory Features
All parameters we got the calibration certificate from Beijing Meteorological Service(It’s the most authoritative in China).
Professional develop and research team, we dedicate for the new technology research to make our devices better and better.
Our factory is 3A credit enterprise, meanwhile we have ISO Quality Management System, Environmental Management System, Occupation Health Management System. We also get the certificate of IPMS and Computer Software Registration.
Products Features

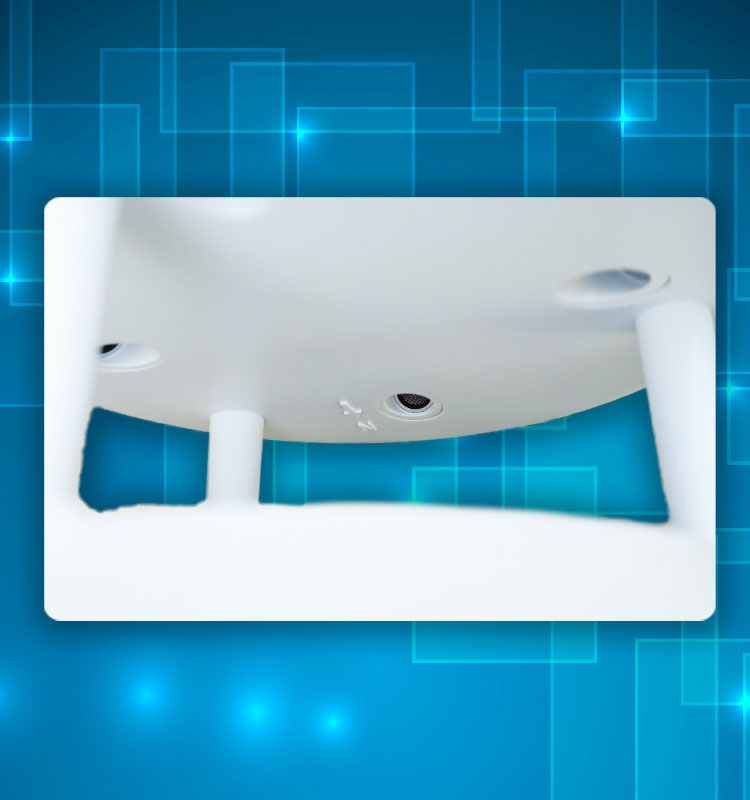

The wind monitor sensors are hidden at the top of instrument, compared with the one at down side and outside, it is more clean, specially in snow or raining circumstances. We use the continuous frequency conversion principle to measure the data. By the phase discrimination and phase demodulation principle to confirm the wind specifications. We got two patents for this sensor.
6 parameters in 1 instrument.
No need to calibrate the instrument.
Advanced sensor technology, real-time measurement, no start-up wind speed.
Highly integrated, no moving parts, zero wear rate, maintenance-free.
ASA engineering plastic shell, it can protect the instrument from ultraviolet ray and other radiation.
The probe is designed with clip-type, so when transportation will not be loose.

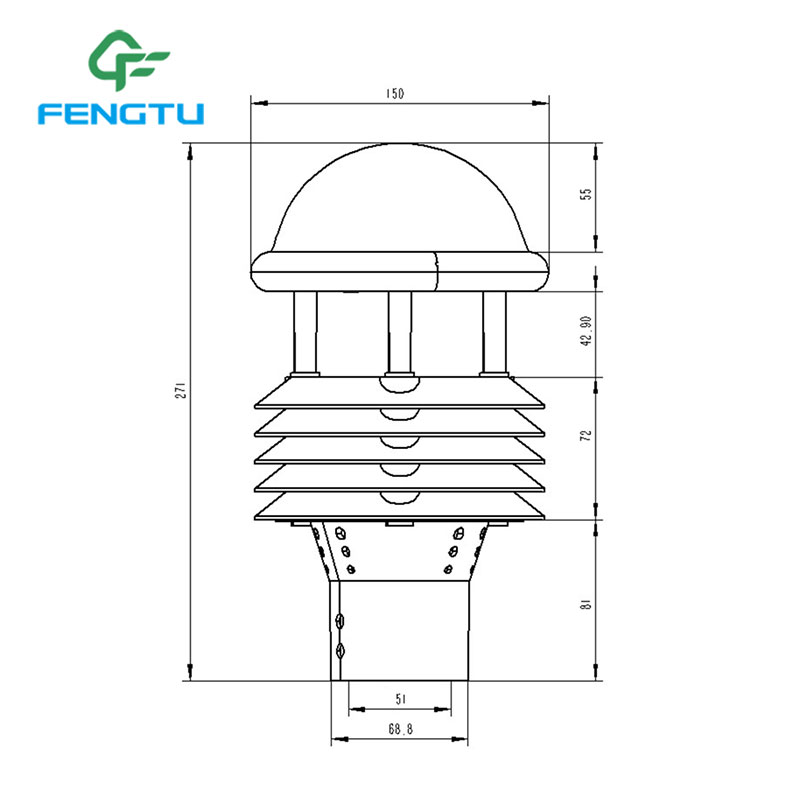

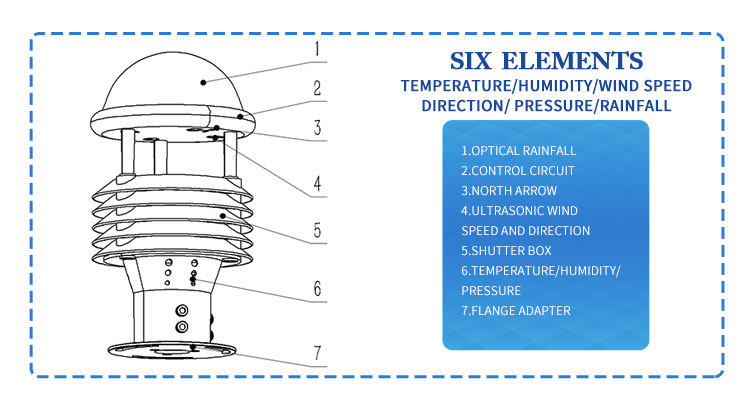

4.Instrument Structure
1-Rainfall sensor(optics)
2-Pilot Circuit
3-North Arrow
4-Ultrasonic Probe
5-Thermometer Shelter
6-Temperature, humidity, pressure sensors
7-Flange
5. Guarantee
a. year quality guarantee. During guarantee, if any quality problem, we will send new to clients.
b. 24 hours online after sale service.
c. Engineer Door-Visiting Service is available.
