el detector

el detector

Model:FT-EL1

Brand:fengtu

el detector is used to detect internal defects of solar modules and accurately detect internal quality problems of photovoltaic solar panels both day and night.
  • Product details
  • Related products
  • Related articles

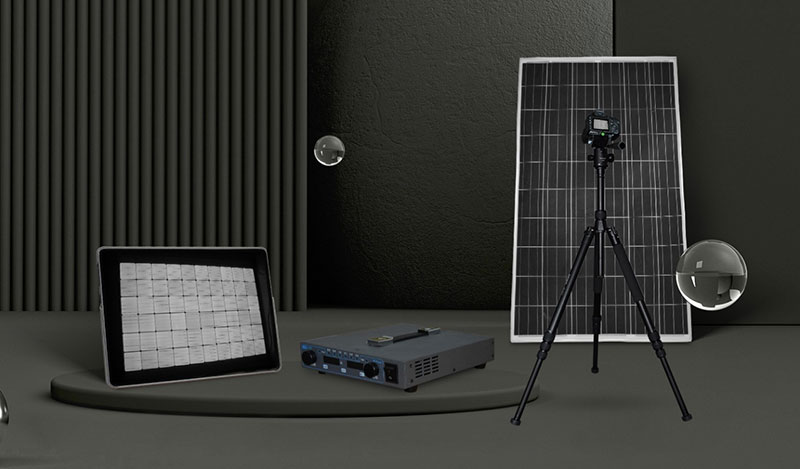

el detector Product Introduction:

el detector is used to detect internal defects of solar modules and accurately detect internal quality problems of photovoltaic solar panels both day and night.el detector is used for internal defect detection of photovoltaic solar panels, which can help users complete product quality inspection and control production and installation risks.

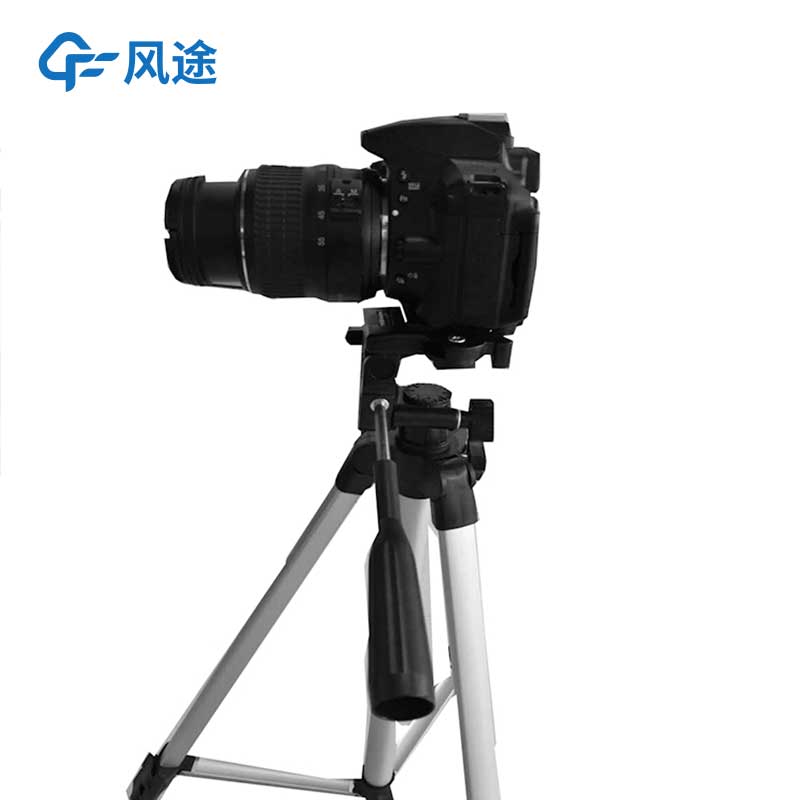

The el detector is equipped with a 20 million-level infrared camera that can effectively help users complete photovoltaic panel quality inspection.The entire machine is equipped with a lighter test power supply and tripod module, which is more convenient to carry and transport, and is not affected by aviation.

el detector application scenarios:

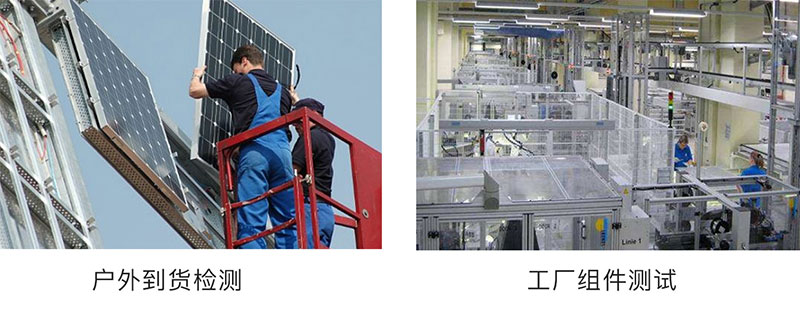

Suitable for photovoltaic power plant component arrival inspection, as well as component quality inspection in warehouses/laborries/factories.

el detector recognizes defect types:

Hidden crackFragmentFragmentsBreak the gateBlack heartFalse welding
Process pollutionInefficient filmBlack bordersinteringOver-imposedperforation

el detector product features and advantages:

1.Convenient to carry and suitable for mobile power station testing

2.Higher accuracy and better definition

3.The image quality of 20 million-level infrared cameras is more thorough

4.Programmable constant current power supply detection is safer and more stable

5.Viewing the image of the tablet computer without camera viewing and detecting the image

6.1.5 meters light tripod moves light and simple

7.The whole machine module is as low as 5kg, and the backpack is light and portable

el detector application fields:

SceneTest before installation of factory components, warehouse components, power station on-site components,
testDaytime: outdoor anti-infrared dark room test; indoor sunlight environment test Night: direct tripod test, light and moonlight have no effect
ObjectCrystal silicon components, film components (customizable)
quantitySingle-piece component imaging detection

el detector specifications:

ModuleConfigurationSpecification
Camera modulePixels20 million pixels
Resolution4928X3264
chip23.6x15.6mm, CMOS sensor
Accuracy1.5mm/pixel
Light shieldingLights, moonlight, starlight, light indoor sunlight
Test area3000mm*2000mm
Lens18-55mm
Focus ModeFully automatic focus
Battery700mah
Memory card32GB, Wi-Fi wireless
Data line10cm
Power supply moduleOutput current0~5A adjustable
Current Accuracy0.1A
Output voltage0~60V adjustable
Voltage Accuracy0.1V
control PanelLED digital display program control panel
Functional settingsPower-on parameters are preset to save; output one-click power-on
Circuit protectionShort circuit protection, circuit breaker protection, current backflow protection, overheating protection, electrostatic protection, current and voltage adaptive matching photovoltaic panels
Power on10cm AC three-hole input line
DC line3m DC output line, MC4 port docking component
softwarePicture Transmission APPCheck pictures and download
Bracket systemTest bracket1.5m aluminum alloy bracket
Testing gimbalStand integrated installation, 360 degree rotation
Usage environmentDesert, plateau, roof, hills, hillsides, factories, roofs, snow, greenhouses, agricultural light complementary, fish light complementary, scenery complementary, and other environments
Quality assurance after-sales service1-year warranty, 24H response, 72H fault solution, spare parts coordination

el detector configuration list:

Serial numbernameEL1 specificationsquantityunit
1EL Camera20 million pixels1tower
2EL infrared lens18-55mm1tower
4Diagram transmission moduleWi-Fi memory card1set
5Data cable/chargerstandard1set
6Camera batterystandard2piece
7Test bracket1.5 meters1set
8DC voltage-regulated power supply0~60V, 0~5A output; AC220 power supply input1tower
9Power on3 meters1root
10Equipment three-proof boxstandard1set
11EL Picture Transmission APPWireless view of camera detection images1set
*Applicable scenariosComponent testing before installation of photovoltaic power stations; warehouse component testing;

*otherFully automatic focus of the equipment; can be carried by air
