Model:FT-SN10
Brand:fengtu

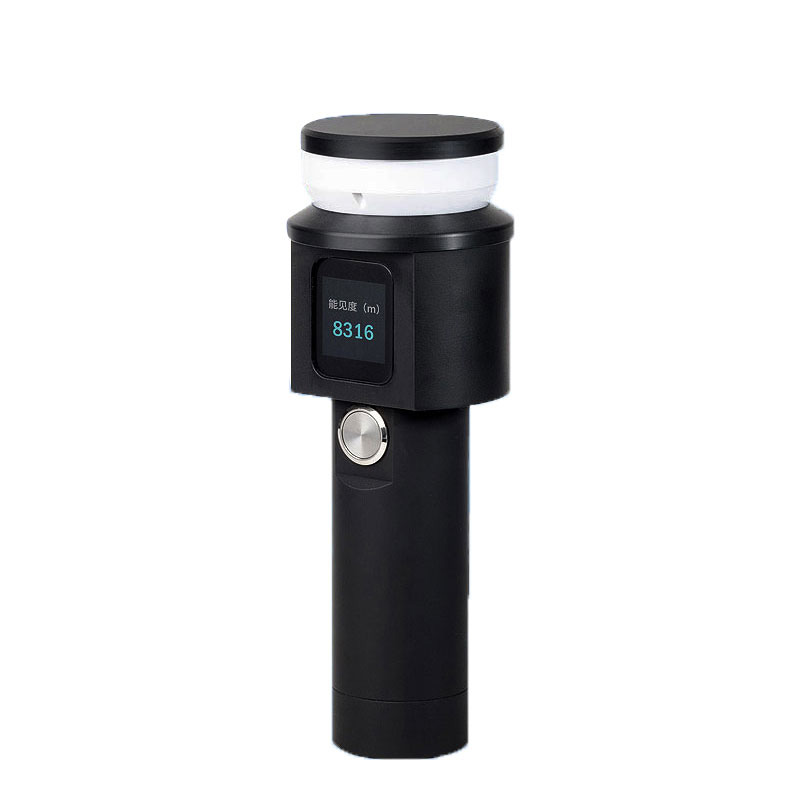

1.Handheld visibility detector product introduction
Handheld visibility detector is a portable device that integrates optical and electronic technology to measure the number of particles in the air and then calculate the visibility of the air.The handheld visibility detector adopts a unique testing method, which draws air into a specially designed closed air sampling chamber. This can ensure real-time exchange with the outside air while not being affected by the external space environment. Normal measurements can also be performed in a small room.
The handle is made of aluminum alloy, which is sturdy and convenient for users to hold with one hand. It can be equipped with 3 18650 rechargeable lithium batteries to ensure that the visibility instrument can work continuously for more than 72 hours.
It comes with a 2.5-inch touch screen to display measurement data in real time. It has a built-in Bluetooth module and a dedicated APP software to receive test data in real time on the mobile phone; the data can also be synchronized to the Internet of Things platform in real time for storage or analysis, which is particularly suitable for field inspections.
2. Product Features of Handheld Visibility Detector
1. It can detect visibility indoors and in any narrow environment;
2. Highly integrated, no calibration or debugging required, and can be used immediately after power on;
3. Built-in rechargeable lithium battery for easy field inspection;
5. Built-in Bluetooth module, professional APP software and Internet of Things platform;
6. It can be handheld for detection while moving or fixed on a tripod;
7. Equipped with professional instrument box, portable and safe;
3. Handheld visibility detector technical parameters
Measuring range | 20-10000m |
Work Environment | Temperature: -10~+65 ℃, humidity: 10~100% |
Data Transfer | Bluetooth module; Wireless transmission module: Mobile 4G DTU (optional) |
Data Display | 2.5-inch touch control display screen/mobile app software display; IoT client display interface (optional) |
power supply | Internal rechargeable lithium battery (continuous operation for more than 72 hours)/charging adapter |
Dimensions and weight | 230*83mm/less than 0.8kg (without tripod) |
