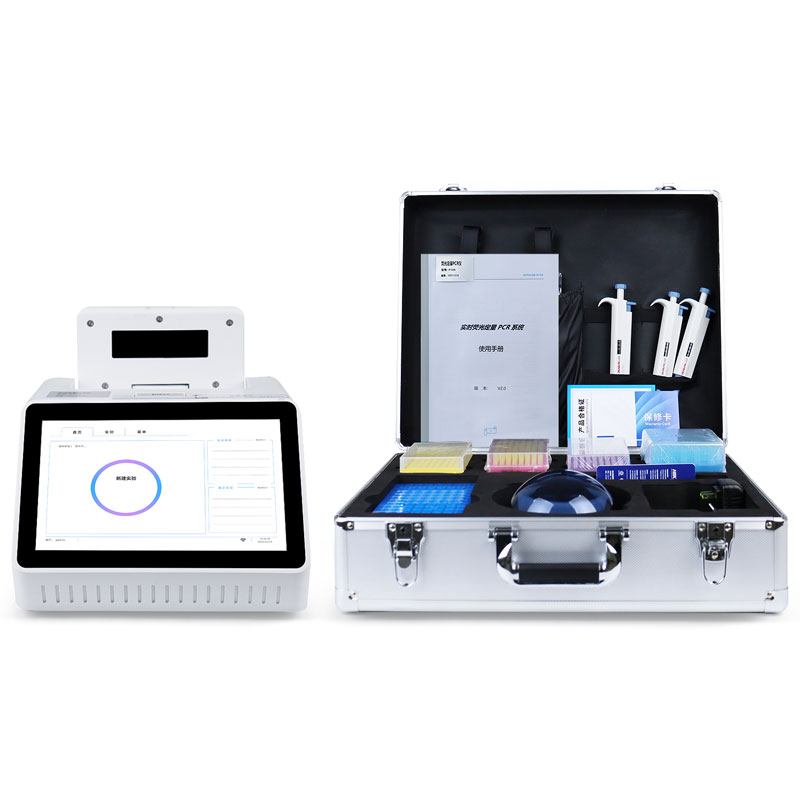

Single channel 8 hole African swine fever detector

1.Application of Single channel 8 hole African swine fever detector

Single channel 8 hole African swine fever detector can quickly and quantitatively determine the concentration of African swine fever virus. The operation is fast, simple and sensitive.African swine fever virus detection is an important measure for the prevention and control of African swine fever and is of great significance.In order to further improve the accuracy of African swine fever virus detection results and standardize the production, operation and use of African swine fever virus diagnostic products, starting from January 1, 2021, all relevant departments and units will conduct animal quarantine or disease monitoring and diagnosis.When testing pigs and their products for African swine fever virus, diagnostic products for African swine fever virus that have obtained a product approval number issued by the Ministry of Agriculture and Rural Affairs should be used to ensure accurate test results.

Single channel 8 hole African swine fever detector (real-time fluorescence quantitative PCR instrument supports variable temperature detection) is used to run virus detection experiments and analyze experimental data; the instrument can be operated in the laboratory or used in field scientific experiments, with corresponding Reagents for rapid and accurate qualitative detection of analytes or target nucleic acids in other analytes taken from samples to be detected.

The Single channel 8 hole African swine fever detector is equipped with an African swine fever virus fluorescent PCR detection kit and an African swine fever virus fluorescent PCR nucleic acid detection kit, which have been approved by the Ministry of Agriculture and Rural Affairs and can meet the needs for rapid on-site detection of African swine fever nucleic acid.It can quantitatively and quickly diagnose livestock diseases such as African swine fever, avian influenza, swine fever, blue ear, pseudorabies and other diseases.It is widely used in farms, slaughterhouses, food processing plants, meat product deep processing enterprises, the Ministry of Agriculture and Rural Affairs, and animal husbandry.Used by bureaus and inspection and quarantine units.

Laboratory technicians need to undergo specialized training in laboratory technology, instrument and software operation, and have proficiency in relevant operating skills.

2.Single channel 8 hole African swine fever detector instrument features

1.Small size, light weight, easy to carry.Easily meet the needs of out-of-town experiments.

2.Built-in 7-inch high-definition capacitive screen PDA, touch screen operation, simple and fast.

3.Marlow's high-quality Peltier refrigeration chip, combined with the German high-end PT1000 temperature sensor and the temperature control mode of the electrical resistance heating compensation edge, has a maximum heating speed of 7°C and a maximum cooling speed of 5°C, which greatly shortens the experimental time.

4.3s fast lighting mode for the entire board to ensure the consistency of hole positions in experimental results.

5.Simple and intuitive software guidance makes it easy to start detection experiments.

3.Application fields of Single channel 8 hole African swine fever detector

basic scientific research

Pathogen detection

Adulteration of meat products

GMO testing

Food safety testing

Drug development and rational drug use

gene expression

water body monitoring

4.Technical parameters of Single channel 8 hole African swine fever detector

Sample capacity: 8x0.2ml, supports 8 strips

Applicable consumables: common transparent PCR consumables, 8x0.2ml tubes, 0.2ml single tube

Reaction system: 5-120ul reaction mode system

Heating/cooling module: imported semiconductor thermoelectric module

Temperature control range: 4°C-99°C

The average rate of temperature rise and fall is ≥2°C/second

Temperature control accuracy: ≤±0.1°C

Temperature uniformity: ≤± 0.2°C

Number of temperature control areas: multiple points (2 points)

Number of gradients: 0

Gradient temperature range: None

Number of gradient holes: None

Excitation light source: maintenance-free LED

Excitation light wavelength range: 400-700nm

Detection components: imported photoelectric detector

Number of detection channels: standard 1 channel (FAM), advanced configuration (optional) (FAM, VIC)

Applicable dyes and probes: FAM/SYBR Green I, VIC/HEX/CY3 (optional), ROX/Texas Red (optional), Cy5, TAMARA (optional)

Software functions: Fluorescence quantitative PCR system software; real-time amplification reaction curve function; specific sample real-time reaction curve display; data analysis function;

Automatic judgment function of yin and yang results; graphical display function.

Noise: <45dB

Screen size: 7 inches (HD)

Touch screen: capacitive

External USB: supports data import and export

Hot lid: automatic pressure adjustment

Appearance size: 290(W)*308(L)*130(H)

Box size: 75 long * 38 wide * 19 high cm

Net weight: about 3Kg
